Profiles and Plan Views Introduction

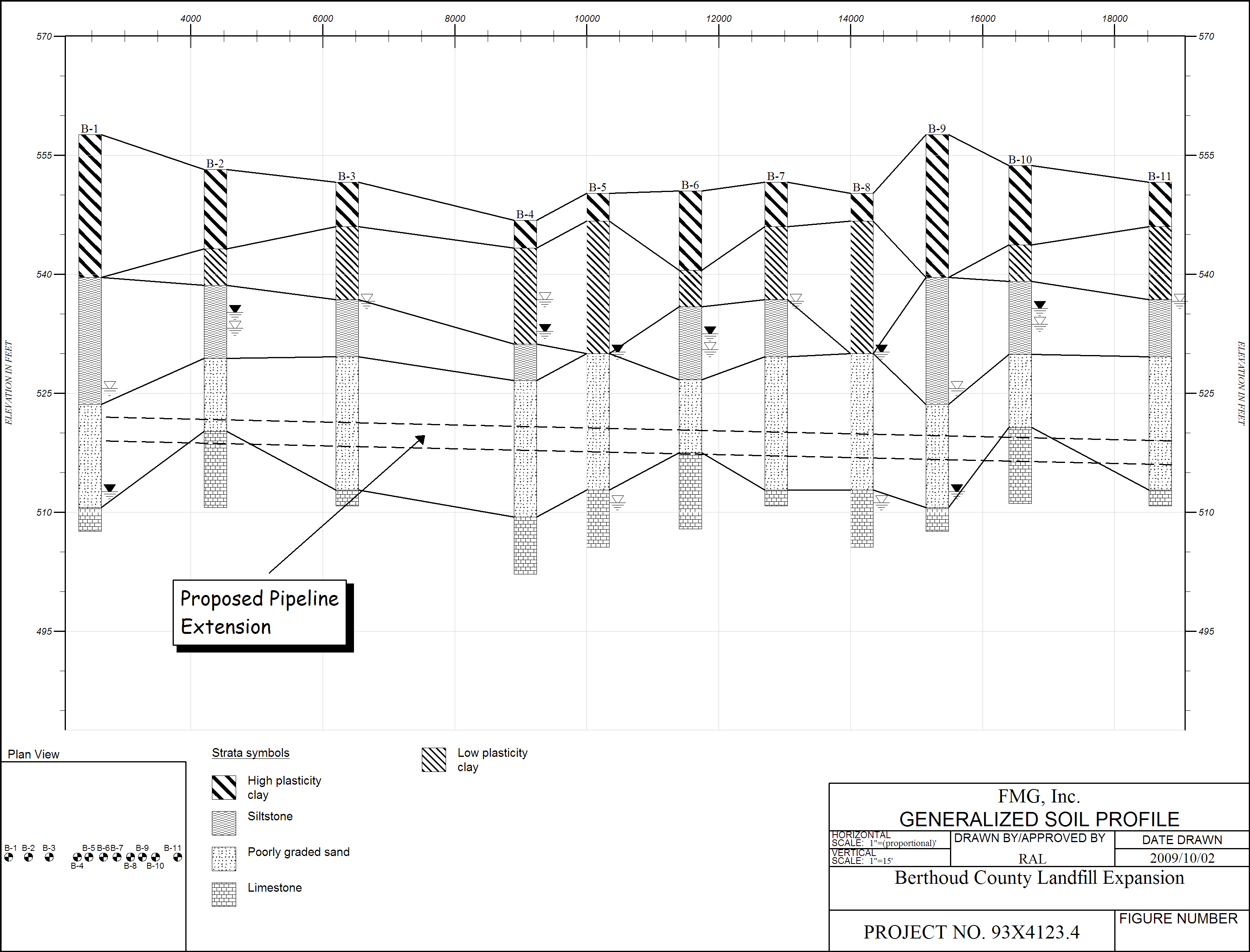

In addition to generating reports featuring one subsurface boring per page, LOGDRAFT also generates subsurface profiles, which are reports that can show more than one boring on a single page. A sample profile, complete with custom annotations, is shown this figure.

Annotated Profile

Profiles are generated by using profile forms, which are similar to the boring log forms discussed in this page. A number of profile forms are included with the package -- you can also custom-design a form to your own specifications with the help of the directions found in the Customization Guide.
